Intelligent power switching — fast, automatic, and reliable

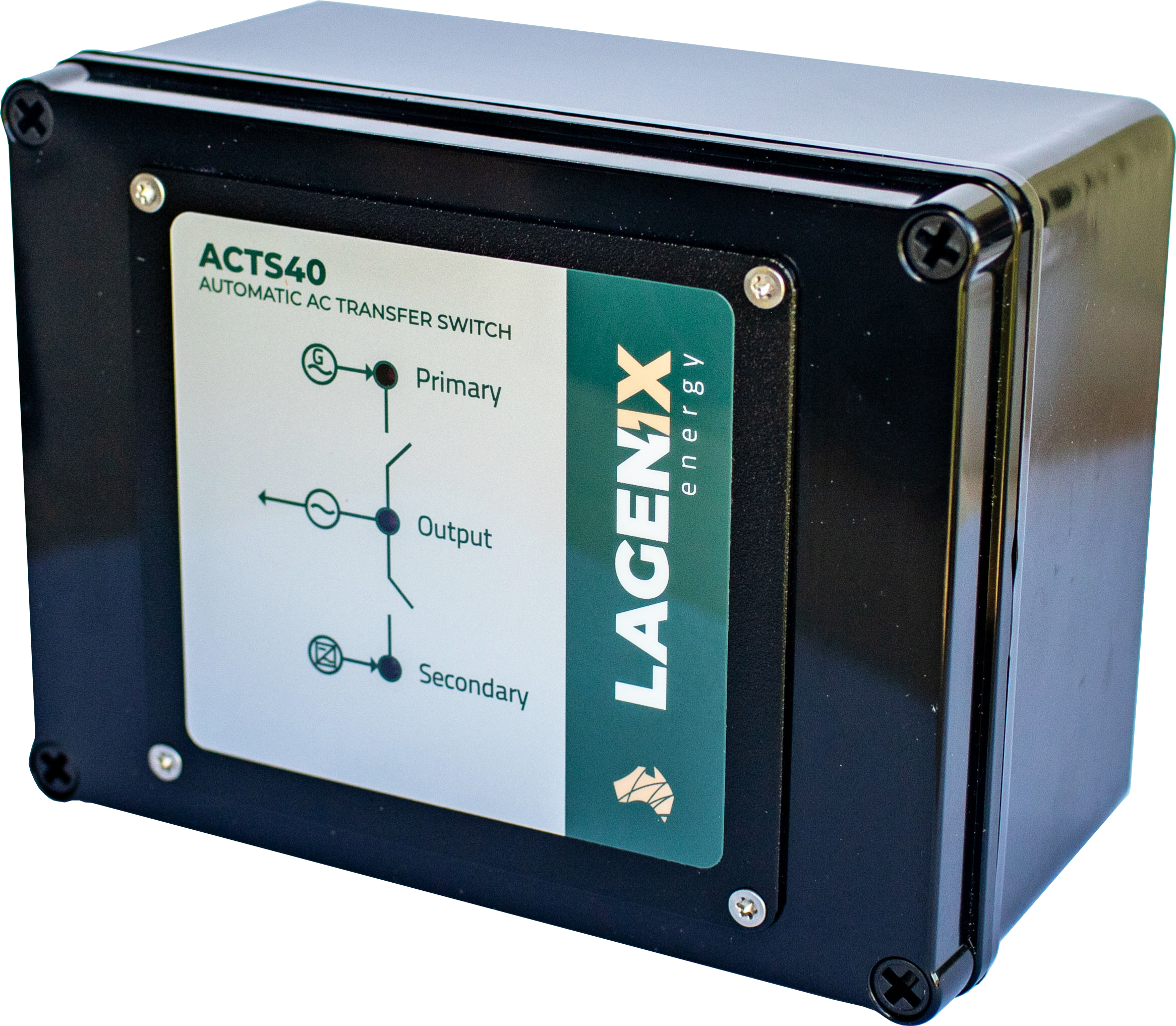

ACTS 40
Automatically switches between two AC power sources for homes, businesses, and mobile or marine applications - protecting sensitive electronics while ensuring uninterrupted power.
How It Works
The ACTS40 continuously monitors two AC power sources and automatically transfers supply to ensure uninterrupted operation. Designed for a variety of systems including industrial and residential off-grid, it intelligently manages power changeover without user intervention.
Compact, high-capacity design supporting automatic changeover between two AC sources for a single-phase output up to 40A at 110V or 240V
Ultra-fast transfer to the secondary power source in under 12 milliseconds
Automatically returns to the Primary AC source after a 5 or 30-second user-selectable delay
Primary-dominant logic ensures the ACTS40 always prefers the designated Primary AC source when available
Zero-crossing switching ensures safe transitions and protects sensitive electronic equipment
Continuous voltage monitoring on the Primary input, ensuring stable and generator-aware operation

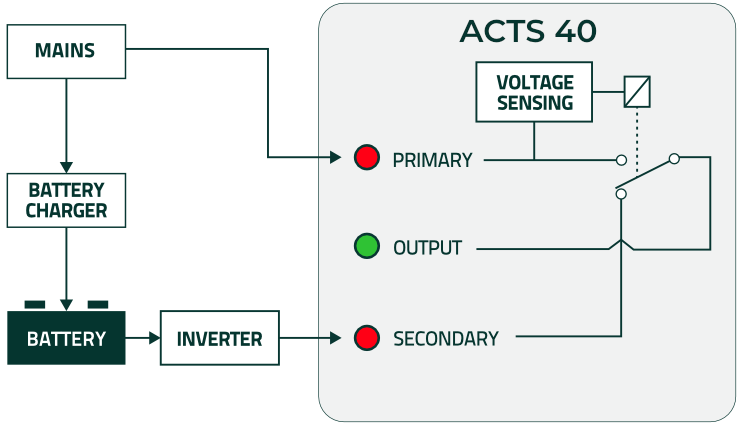

UPS Example

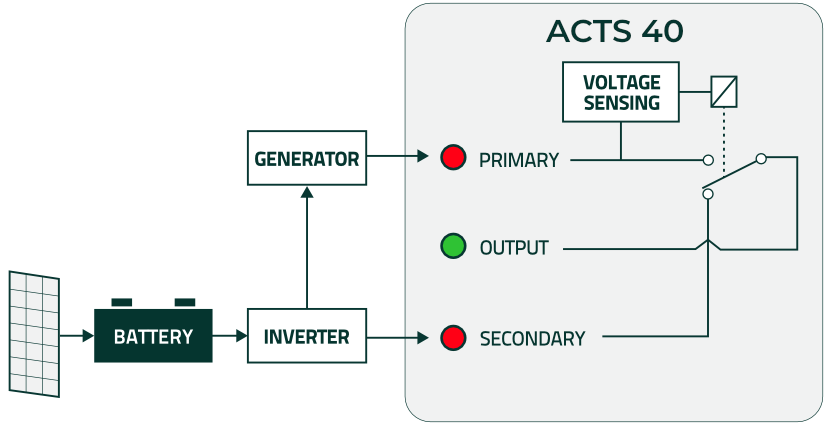

Off Grid Example
Key Benefits
Proven Reliability
Developed by Latronics with 40+ years of power electronics expertise.
Compact & Easy to Install
Space-saving design for versatile installation in a wide range of environments.
Fast & Clear Operation
LED indicators show power status and changeover takes place in under 12ms.
Protects Sensitive Equipment
Safe for UPS and delicate electronics; prevents damage during power transitions.
Smart, Automated Power Switching
Automatically prioritizes multiple power sources for seamless operation.
High Capacity & Safe Design
Supports up to 40A (10KVA) with double-pole contactors eliminating grounding issues.
Applications / Use Cases
Off Grid Residential
RV & Marine
Residential Main + Solar
Industrial UPS Systems
Built on
40 Years of Proven Performance

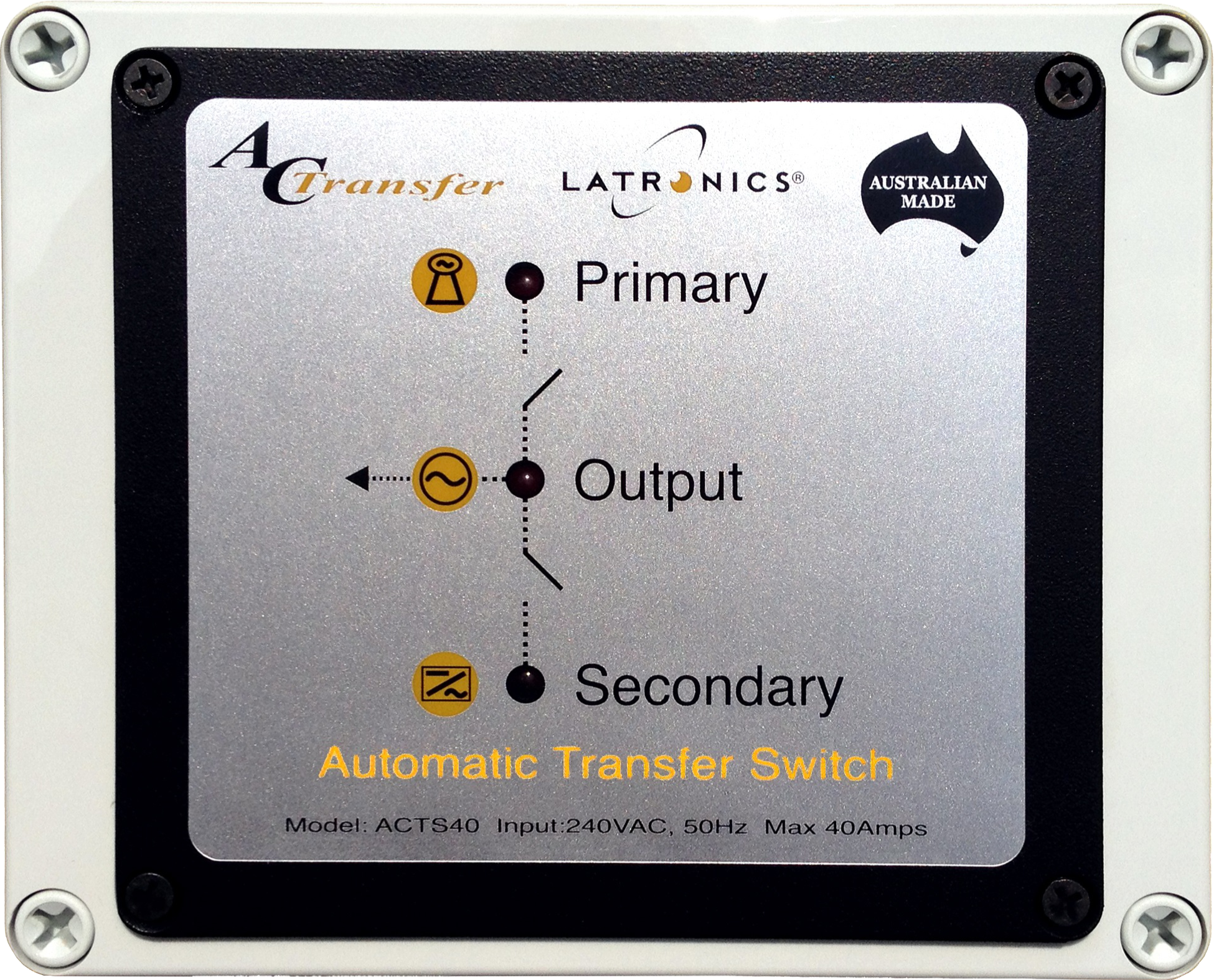

The Lagenix ACTS40 continues the legacy of the Latronics ACTS40, maintaining the same specifications and rigorous quality standards trusted by professionals for over 40 years.
40 Years of Australian Engineering
Tech Specs

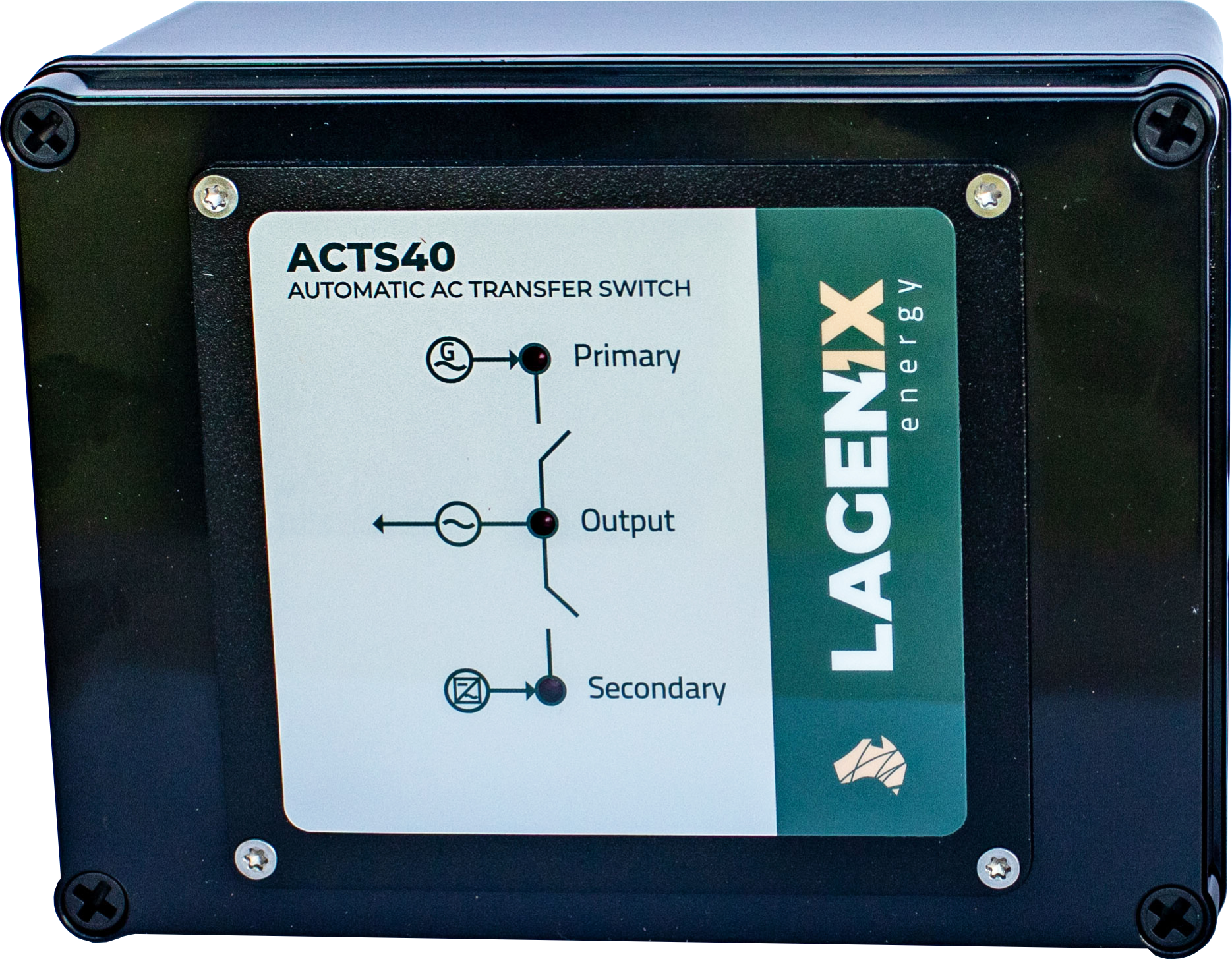

ACTS 40
40A (Up to 10kVA)
2
180-280 VAC
90-140VAC
-10 to + 50 C
Screw Terminal Block
Approximately 12ms
Fire Retardant ABS | IP66
1kg
200x150x100mm
2 Years
Model
Maximum AC Current
Number of AC Inputs
Input Voltage +/- 3%
Standard
V-Option
Operating Temperature
AC Connections
Transfer Time
Enclosure
Weight
Dimensions
Warranty

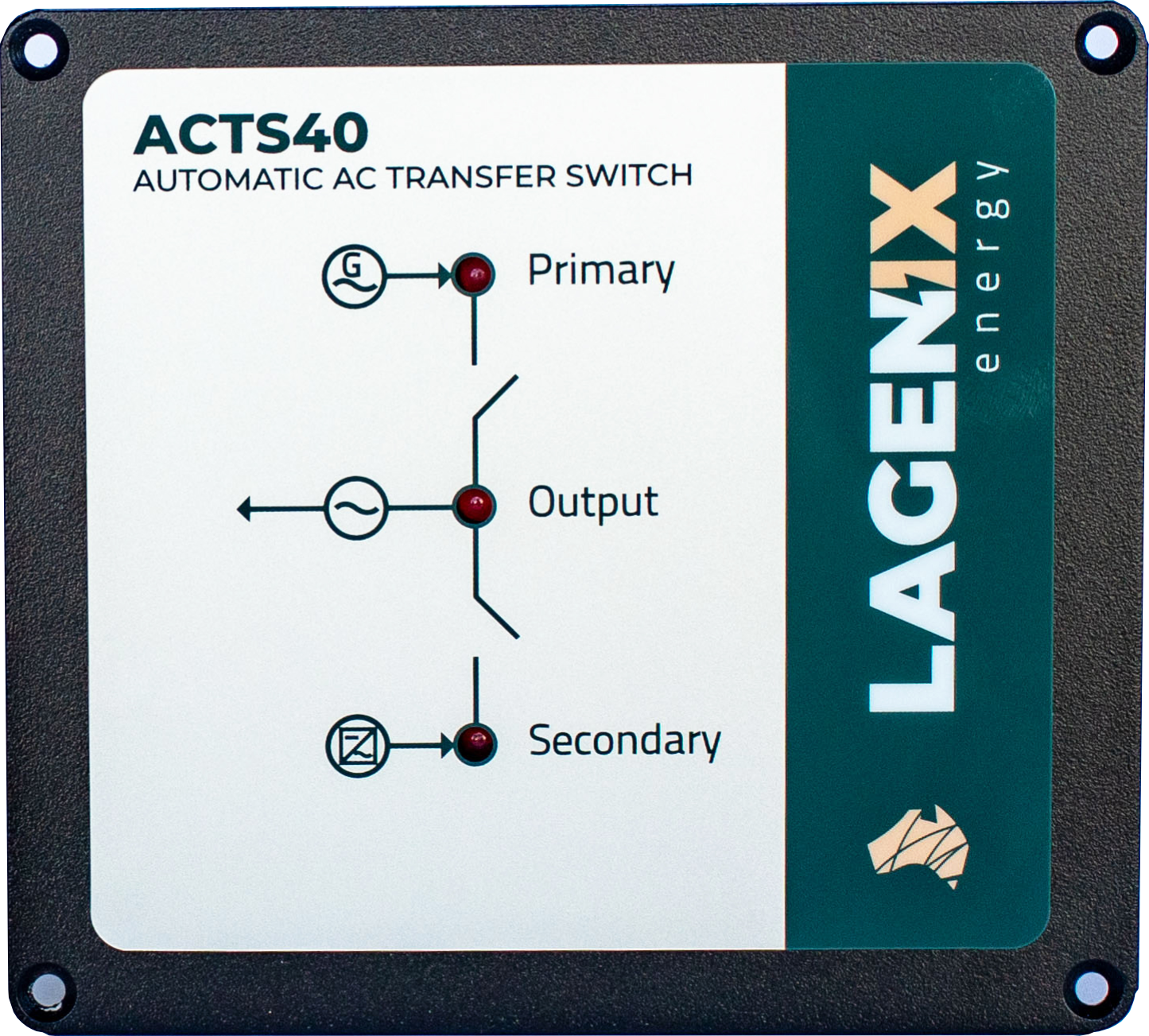

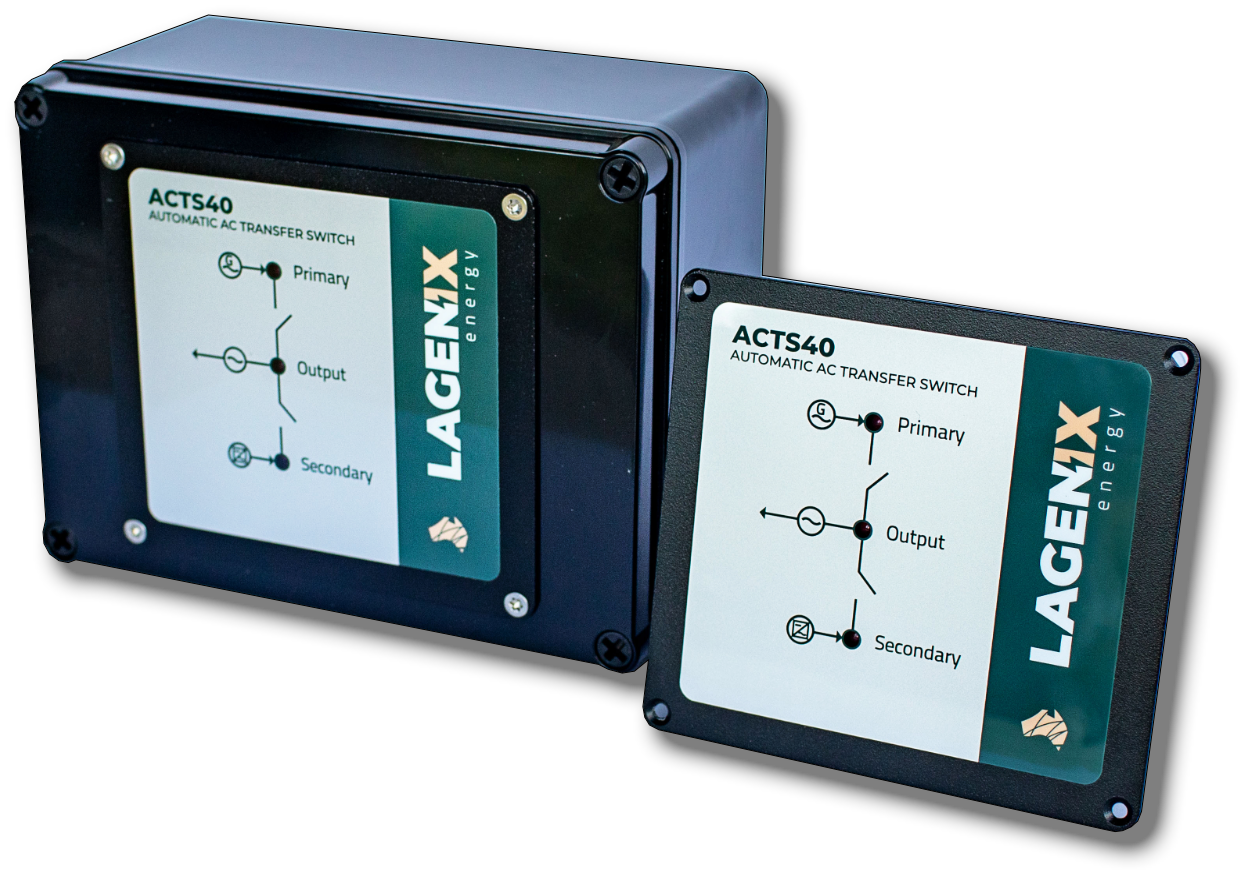

ACTS 40 - PM
40A (Up to 10kVA)
2
180-280 VAC
90-140VAC
-10 to + 50 C
Screw Terminal Block
Approximately 12ms
N.A. | Panel Mount model
0.6kg
134x122x70mm
2 Years
Model
Maximum AC Current
Number of AC Inputs
Input Voltage +/- 3%
Standard
V-Option
Operating Temperature
AC Connections
Transfer Time
Enclosure
Weight
Dimensions
Warranty
FAQ
-
The ACTS40 is a reliable automatic transfer switch that safely transfers your electrical load between two AC power inputs
-
In a standard Uninterrupted Power Supply (UPS) system the Mains Grid is setup as the Primary power source and the battery powered stand alone inverter as the Secondary power source. In the event of a Primary source power failure or outage (e.g. natural disaster), the transfer switch would instantly swap the power input to the Secondary source allowing you to continue to function uninterrupted. Once the grid power is restored, the ACTS40 will automatically switch back to the Primary source.
-
In an off-grid system an AC generator (generally switched off) is wired into the Primary input of the ACTS40 whilst a battery powered stand alone inverter is wired into the Secondary input of the unit to run the power most of the time. When the solar charge controller determines that the battery voltage is getting low it can send a signal to start your generator. As soon as the voltage of the generator is within stable limits, the ACTS40 will switch over and use that Primary power source while your off grid inverter goes into standby sleep mode. Once the generator switches off and the batteries are recharged, the ACTS40 will switch back to the inverter supply on the Secondary input.
-
The ACTS40 is rated for 180-280 VAC, whilst the ACTS40-V is rated for 90-140 VAC. Both versions of the unit can handle up to 40A. The ACTS40 is suitable for most residential and industrial applications.
-
Installation should be performed by a licensed electrician. The ACTS40 comes with a detailed manual, and our team can provide guidance for proper setup.
-
Yes, the ACTS40 includes a 2 year warranty.
