INDUSTRIAL RACK-MOUNT INVERTER - SINCE 1985

Forty years deployed in mining pits, rail corridors, marine vessels and remote outposts across Australia. Engineered by Latronics. Now built by Lagenix Energy.

THE IRM SERIES

Download Manual
Request a Quote
40 Yrs In the field
500 – 7000W Power range
24 – 120V Widest DC range in class
100% Designed & made in Australia

THE LEGACY

FOUR DECADES.
ONE INVERTER FAMILY.

Most backup power systems only earn their keep the moment the mains fails. As the last source of power, the inverter has to be reliable and ready to operate in the blink of an eye — a standard the IRM has held since Latronics started building sinewave inverters in 1985.

1985
Latronics founded — specialist sinewave inverter manufacturer, Australian designed and built.
2000s – 2020s
The IRM becomes the standard rack-mount inverter for mining, rail, telecommunications, marine and remote power installations nationwide.
2006
Latronics broadens the IRM's DC input range, adding higher-voltage options (72V-120V) to serve larger battery banks and industrial installations.
June 2025
Latronics ceases manufacturing after four decades in industrial power.
July 2025
Lagenix Energy was founded to carry Latronics' reputation forward and support every customer already relying on an IRM.
Today
The IRM Series is back in production — same engineering, manufactured and supported by Lagenix Energy.

WHY THE IRM STILL LEADS

BUILT FOR INDUSTRIAL
AND COMMERCIAL DUTY

40

40 years in the field

Proven across mining, rail, telecommunications, marine and remote industrial sites where failure isn't an option.

RG

Rugged by construction

Powder-coated hot-dipped zinc/iron alloy casing, built for vibration, heat and ventilation. Conformal coating standard on every unit.

OL

Massive overload capacity

300% overload surge rating across all models — starts heavy motors and inductive loads without hesitating.

24–120

Widest voltage range in class

24V, 48V, 96V, 110V and 120V DC input options, covering higher-voltage battery banks most rack-mount inverters can't touch.

CU

Built to your spec

Custom voltages, alarm contacts, custom cable lengths and vibration-proofing for OEMs and systems integrators.

RP

Repairable, not disposable

Lagenix is the official authorised repair agent for every IRM ever built — service it, don't scrap it.

SPECIFICATIONS

IRM AT A GLANCE

Power range500W – 7000W
DC input options24V, 48V, 96V, 110V, 120V
Output230V ±4% (110V option), true sinewave <4% THD, 50/60Hz selectable
Overload capacity300% surge rating / 120% for 30 min
Peak efficiency90–94% (model dependent)
Enclosure19" rack mount, 3RU standard (4RU on selected models)

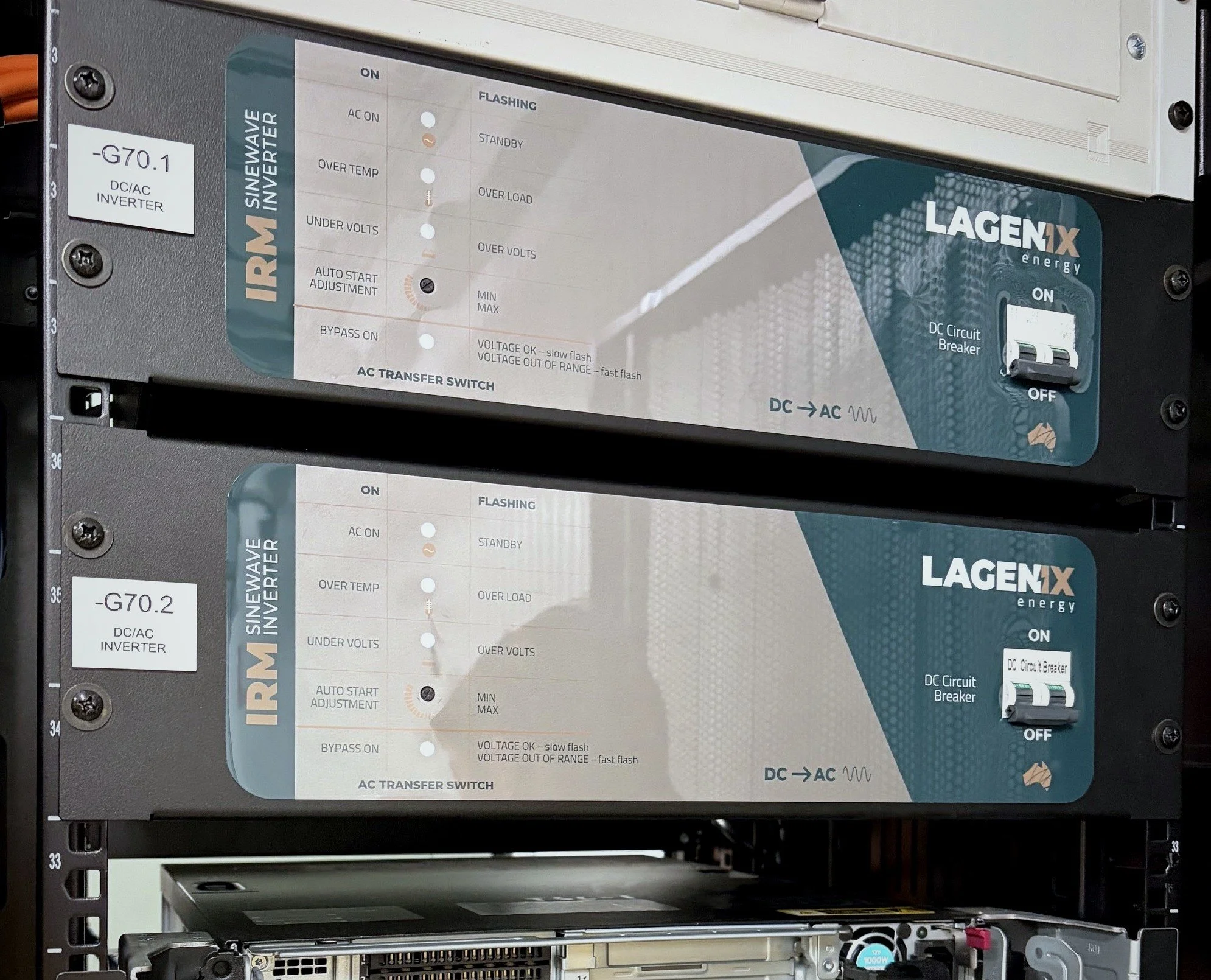

Two Lagenix IRM units in service.
Remote-site installation

APPLICATIONS

EVERYWHERE RELIABLE POWER CAN’T BE OPTIONAL

Mining & Resources

Powering pits and remote sites where mains power isn't an option.

Rail & Transport

The standard rack-mount inverter on rail corridors nationwide.

Telecommunications

Always-on power for unmanned comms infrastructure.

Marine

Deployed on vessels where reliability can't be negotiable.

Remote & Off-Grid Power

The last source of power when nothing else is left.

Motorhomes & RV

Home comforts, wherever the road ends.

Industrial Backup

Instant handover the moment the mains fails.

Commercial Installations

Dependable power behind the scenes.

Complete the system with the ACTS40

Pairing your IRM with backup or shore power? The ACTS40 automatic transfer switch handles the handover in about 12ms.

View ACTS40

START HERE

GET YOUR IRM QUOTE TODAY

Request a Quote
